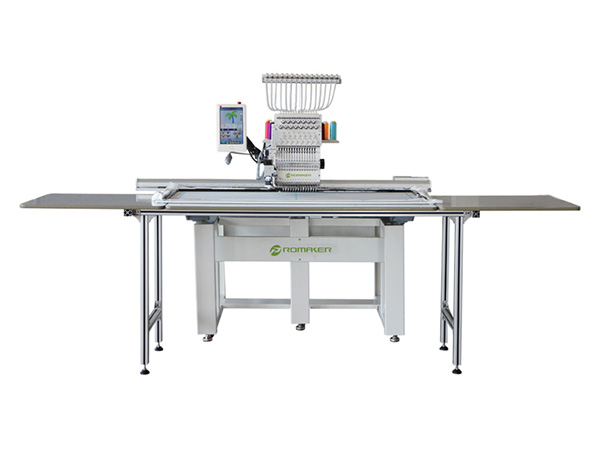

Idea-M Mini Commercial Series
Cap/T-shirt/Tubular Series Embroidery Machine
Features
- The integrated aluminum base frame ensures a low-noise machine operation.
- he spindle motor is highly precise, with the straight shaft structure ensuring this embroidery machine is easy to assemble.
- Maximum speed of 1000rpm
- Built-in wire/wireless control system, supports LAN, WIFI and USB to transfer design formats
- Red light locating system, built-in LED lighting
- Uses Japanese high-performance rotary hooks and bearings
- 270° wide angle cap system
- Automatic broken thread detection
Applications
The idea-m single-head embroidery machine is an ideal solution for boutiques, custom embroidery, embroidery classes, individual use, and other small scale applications.
Specifications
| Model | Needles | Heads | Embroidery area(mm) | Dimensions(mm) | Power supply(V) | |||||
| 9 | 12 | 15 | Flats (X*Y) | Caps (X*Y) | L | W | H | |||
| Idea-M-N01 | · | · | · | 1 | 510*360 | 360*70 | 750 | 900 | 1500 | AC90-250 |
| · | · | · | 510*420 | 750 | 1100 | 1500 | ||||
| · | · | · | 800*500 | 850 | 920 | 1600 | ||||
| · | · | · | 1200*500 | 1630 | 920 | 1500 | ||||
| · | · | · | 1400*500 | 1830 | 1520 | 1600 | ||||
Optional
- Sequin device
- Simple cording device
- Seed beads embroidery device
- Taping beads device
- Hot cutting device
- Fiber laser device
- Boring device
- Chenille heads

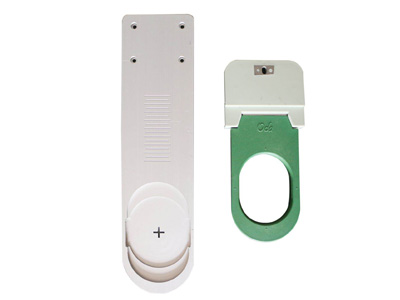

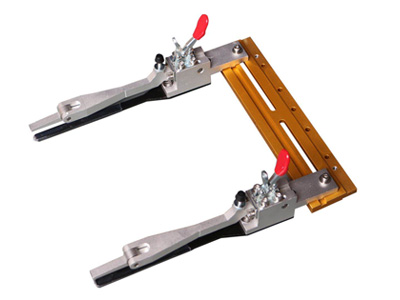

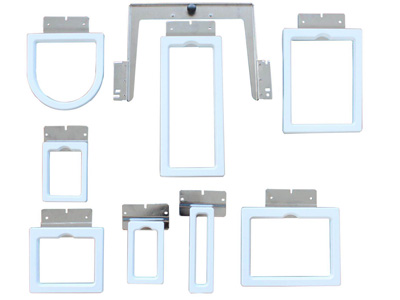

Optional accessories and device
Shoes Devices
8in 1 Frame
Socks Device

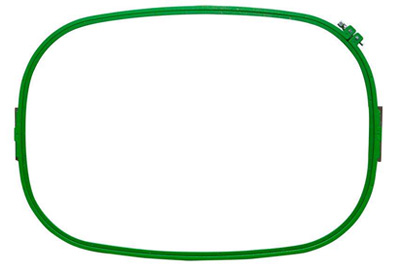

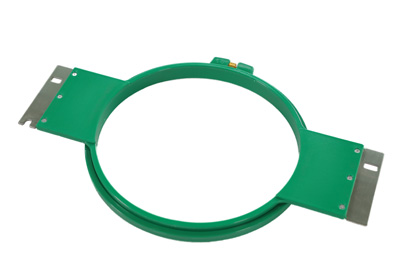

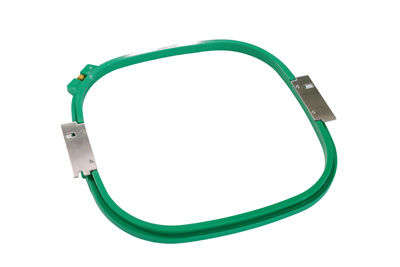

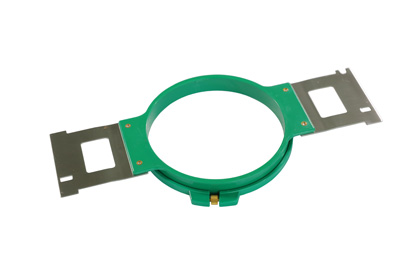

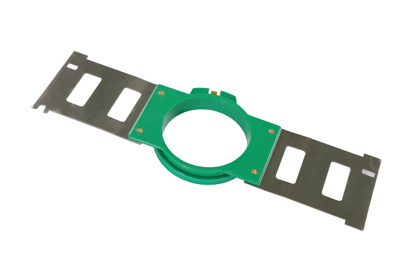

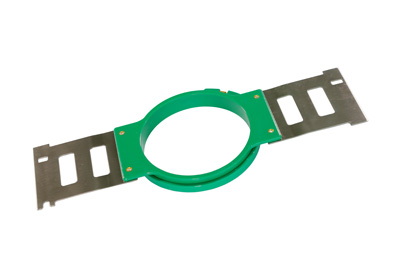

Hoops/frames
Round hoops 90mm
Round hoops 120mm
Round hoops 150mm
Round hoops 180mm
Round hoops 300*300mm
Round hoops 360*540mm

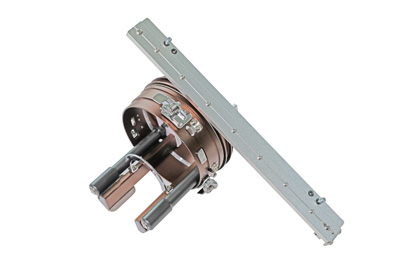

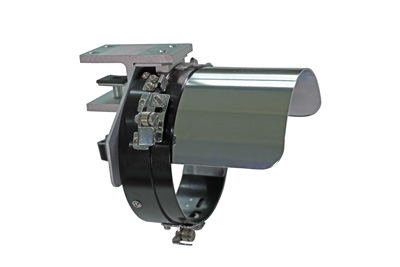

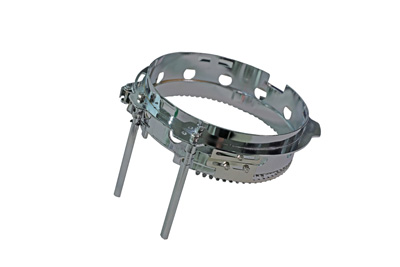

Cap attachment
Cap station
Cap drive
Cap ring
Multi-domain application
T-shirt
Handbag
Hats
Shoes
Trousers
Socks
Network technology
Using advanced network technology. Customers can connect all the machines with one computer, embroidery the same design on all of your machines at the same time.
