MIX-PCS Mix Embroidery Machine | Combination Embroidery Machine

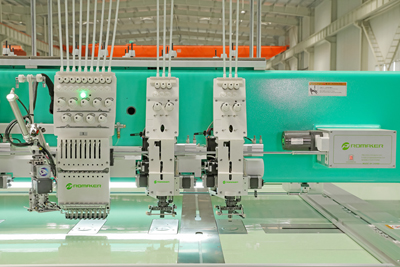

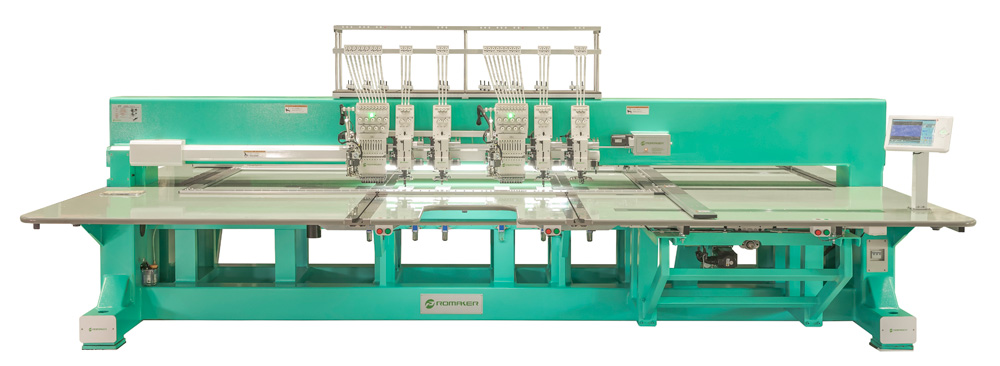

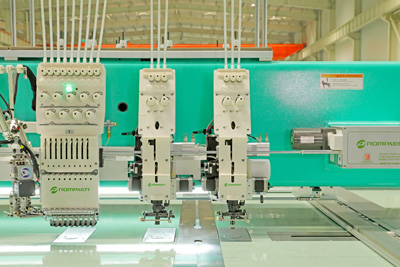

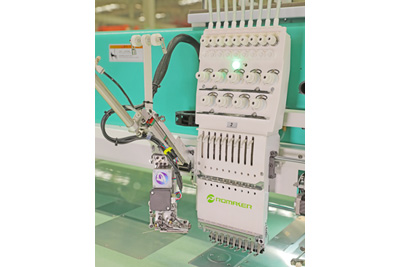

Mix-PCS Series

Mixed Embroidery Machine, Taping and Plain Embroidery

Features

Maximum flat embroidery speed: 1200rpm; maximum taping embroidery speed: 900 rpm.
Independent M shaft, take-up lever adopt automatic separate design
Cording or tapping embroidery is available
Ultra-low noise and ultra-low vibration at high operation speed, can meet wear resistance need at 1350rpm speed.
Service life up to 10+ years

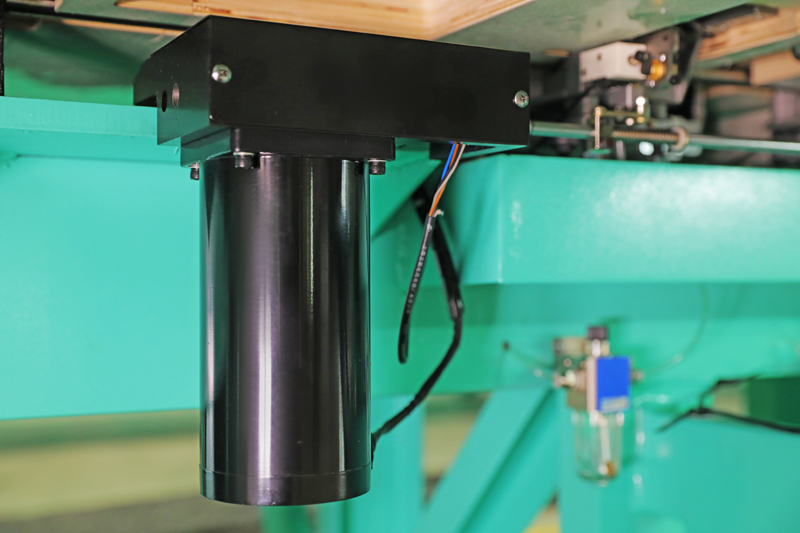

The semi-static trimming system is equipped with a stepping motor, ensuring a 100% trimming pass rate and an adjustable end thread length.
The full structure is reinforced with high precision dowel pins, and a head interval and X, Y axis location accuracy of 0.05mm.

Applications

The MIX-PCS Mix Embroidery machine series is ideal for clothing and home textiles that require multi-element and 3D embroidery.

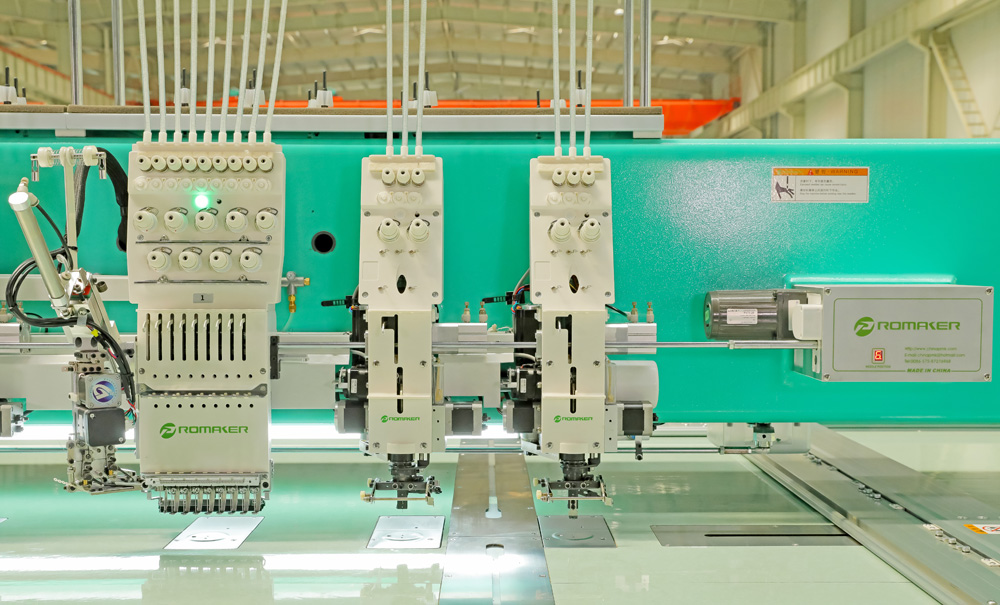

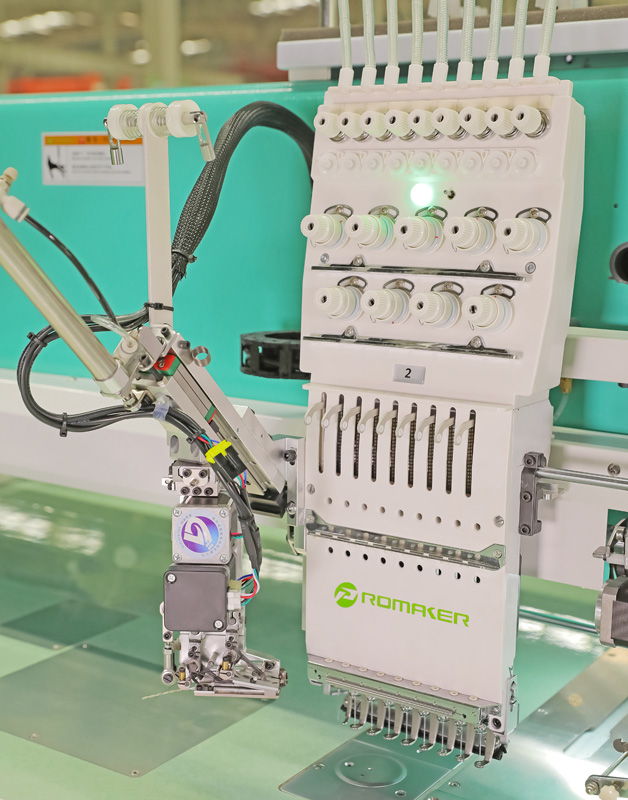

Details

Specifications

Model	Needles	Heads	Head interval (mm)	X travel(mm)	Y travel(mm)	L(mm)	W(mm)
MIX-PCCS-A902-820-1100-1200	9/1/1	2/2/2	820	1100	1200	4320	2950
MIX-PCS-A1513-1000-1400-1600	15/1	13/13	1000	1400	1600	11690	3980
MIX-PCS-A923-500-1100-1300	9/1	23/23	500	1100	1300	14800	3180

Optional

Multi Sequin Device
Simple Cording Device
Seed Beads Device
Taping beads device
Hot cutting device
Fiber laser
Boring device
Chenille heads
Under thread bobbin changer

Service

Promaker believe that keep focusing on customer needs can help us to improve products quality and service. Therefore, we bring in 4S service concept (service, sales, survey, and standard production).
