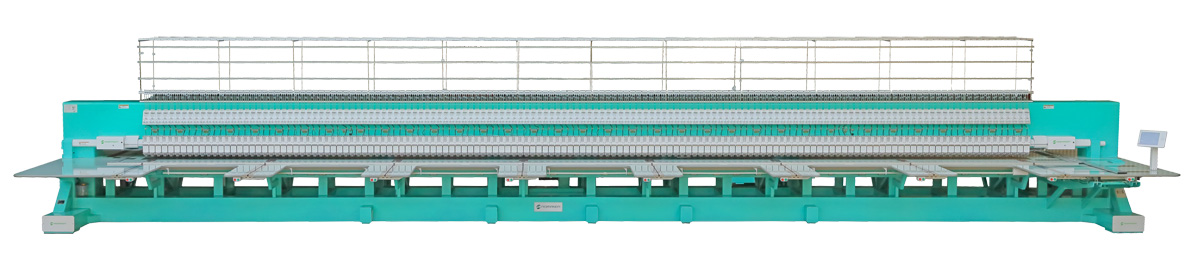

HS Flat Machine Series
Multi-Head Embroidery Machine, Flat Embroidery, 1000rpm
Features
- This is an economical industrial embroidery machine with a maximum flat embroidery speed of up to 1000 rpm.
- Ultra-low noise and ultra-low vibration at high operation speeds.
- Stable and durable, service life of 10+ years
- The thread cutting system is equipped with a stepping motor, with a cutting thread success rate of 100% and an adjustable end thread length.
- The entire structure is reinforced with high precision dowel pins, ensuring the head interval accuracy and X, Y location detection within 0.05mm.

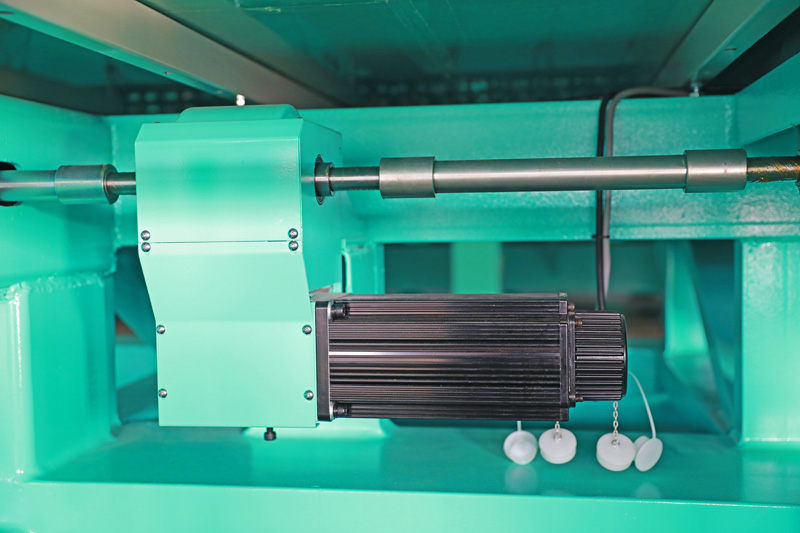

- The servo drive embroidery hoop system features a high torque and light weight, ensuring it meets high speed and high-quality embroidery needs.
Applications
The HS multi-head embroidery machine is suitable for a variety of clothing, home textiles, embroidery artwork, and more. It is capable of working with both thick and thin fabrics.
Details
Specifications
Model | Needles | Heads | Head interval (mm) | X travel (mm) | Y travel (mm) | L(mm) | W(mm) |
PHS-A912-300-600-900 | 9 | 12 | 300 | 600 | 900 | 2320 | 2350 |
PHS-A455-125-550-1300 | 4 | 55 | 125 | 550 | 1300 | 8950 | 3180 |
PHS-A4116-82.5-700-950 | 4 | 116 | 82.5 | 700 | 950 | 12157 | 2580 |
PHS-A4132+3-110-900-1600 | 4 | 135 | 110 | 900 | 1600 | 17620 | 3980 |
Optional
- Multi sequin device
- Cording device
- Seed beads device
- Taping beads device
- Hot cutting device
- Fiber laser
- Boring device
- Simple chenille heads
- Under thread bobbin changer
