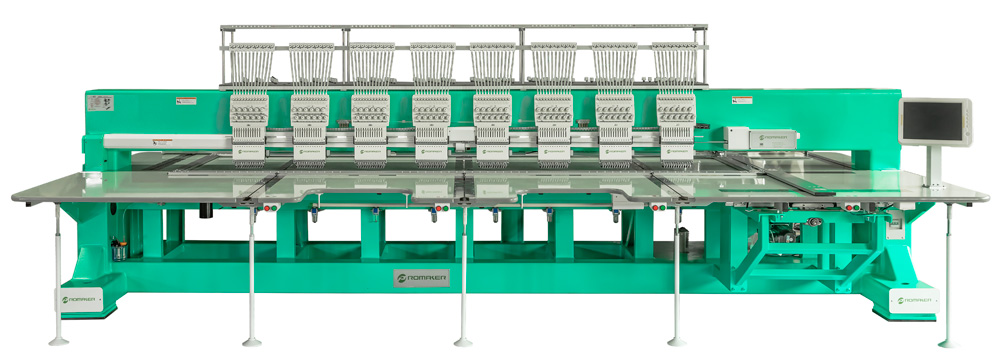

HM Flat Machine Series

Multi-Head Embroidery Machine, High Speed Flat Embroidery, 1500rpm

HM Flat Machine Series
Features
  • Flat embroidery speed of 1500 rpm.
  • he presser foot height is adjustable to different working positions, ensuring high precision embroidery is carried out, no matter how complex the working conditions are.
  • Excellent adaptability: this embroidery machine is capable of working on ultra-thin, ultra-thick and elastic fabrics without sacrificing stability or precision.
  • Ultra-low noise and ultra-low vibration at high speed operation.
  • Excellent wear resistance, service life of 10+ years.
  • The semi-static trimming system is equipped with a stepping motor, enabling a trimming pass rate of 100%, and an adjustable end thread length.

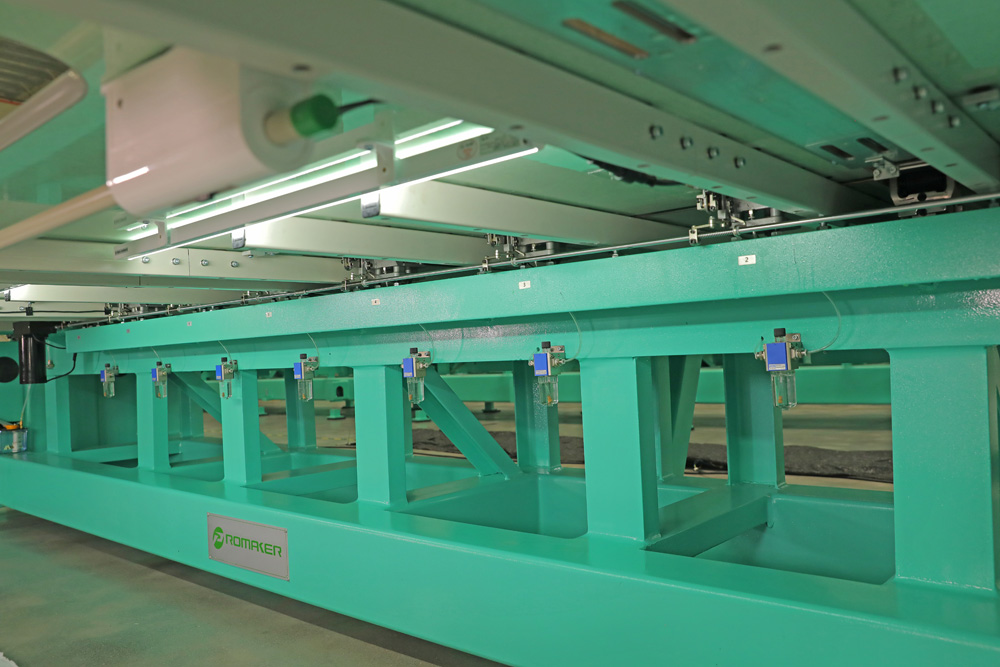

  • The entire structure is reinforced with high precision dowel pins, ensuring the head interval accuracy and X, Y location detection are within 0.05mm.

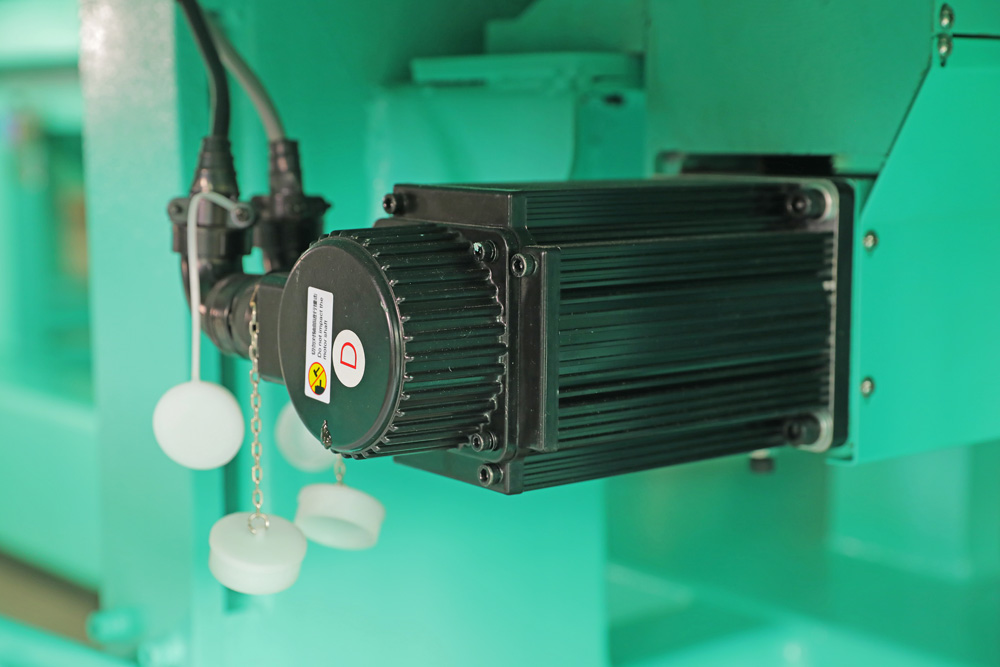

  • The servo drive embroidery hoop system features a high torque and light weight, allowing it to meet high speed, high quality embroidery requirements.
Applications

The HM series multi-head embroidery machine is suitable for large quantity embroidery applications, including ultra-thin, ultra-thick and elastic fabrics. It is designed to meet the needs of high-end fashion production.

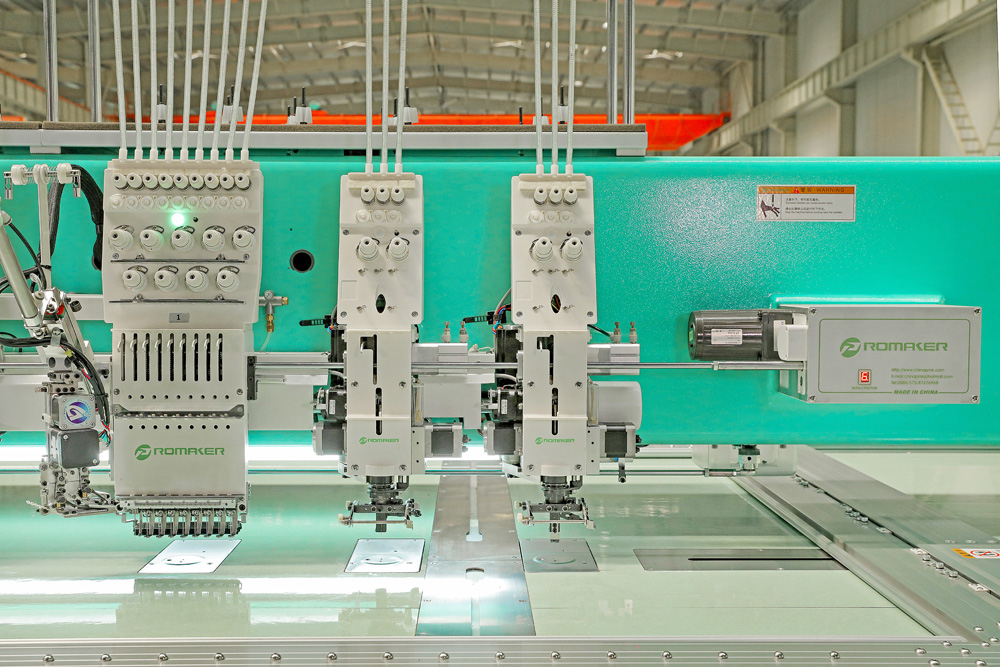

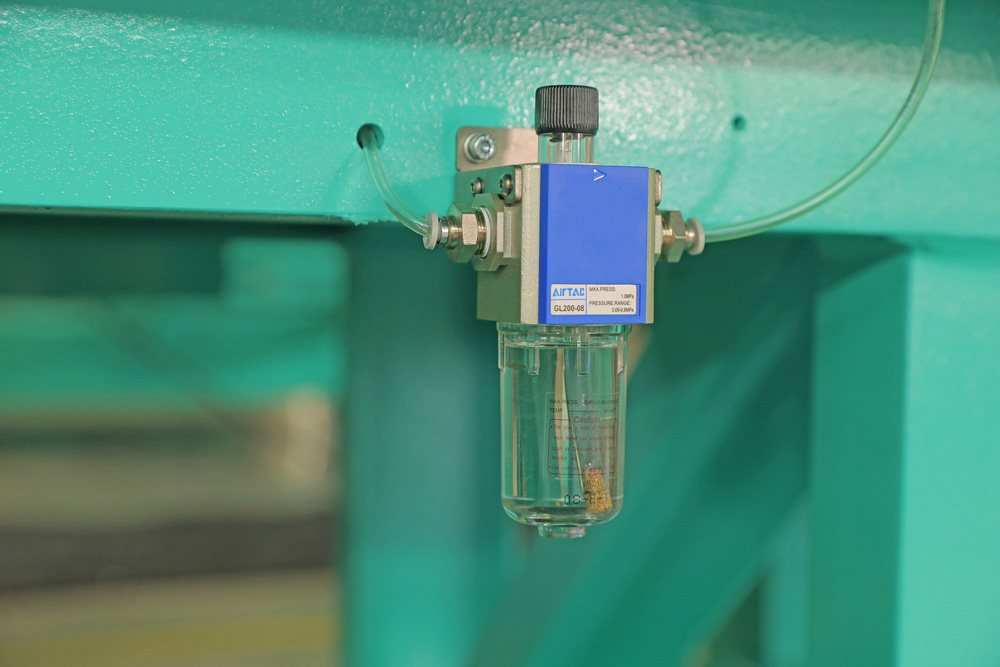

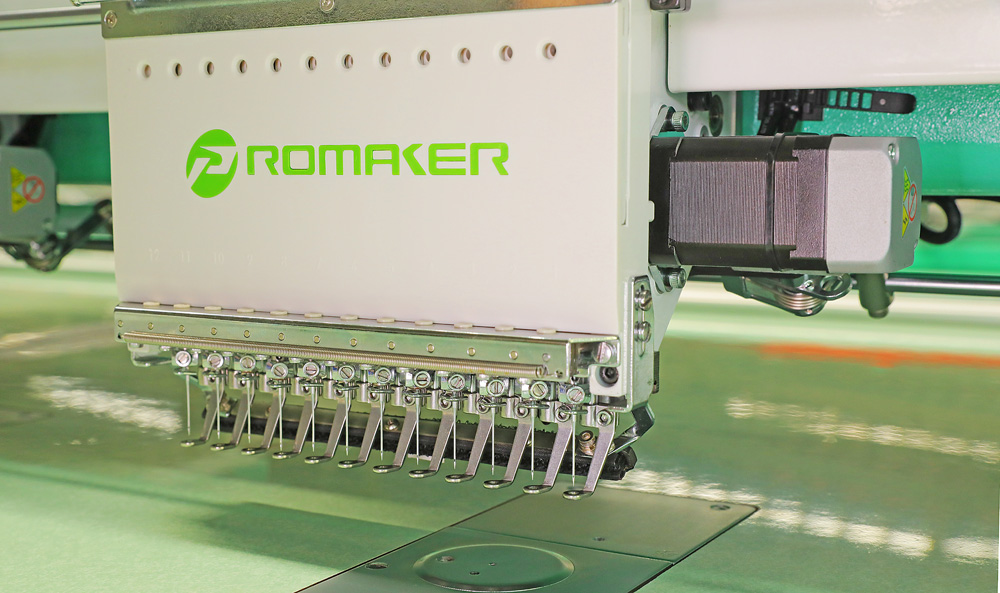

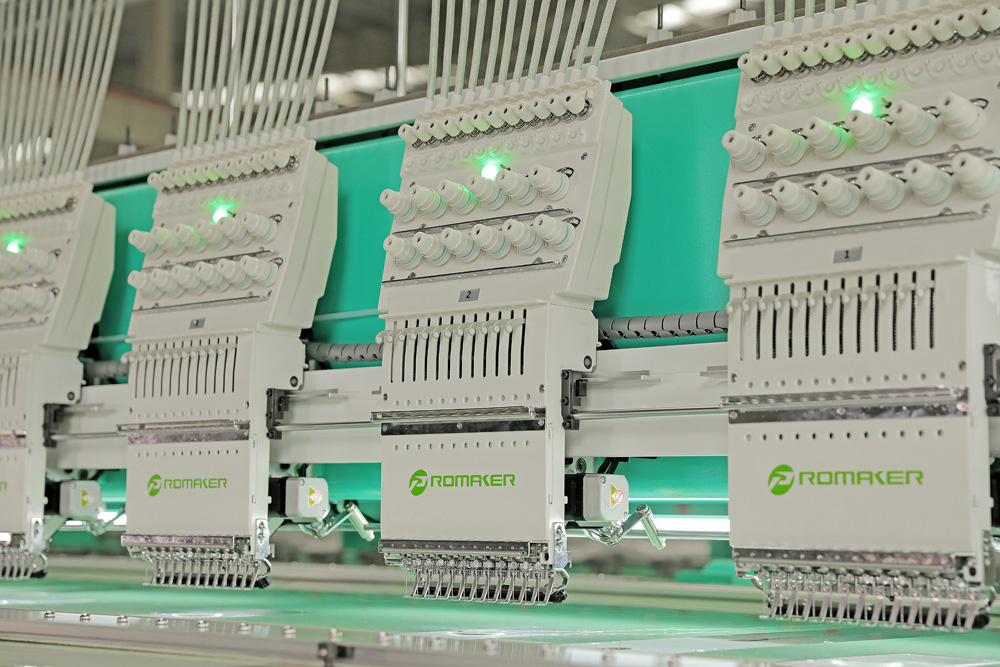

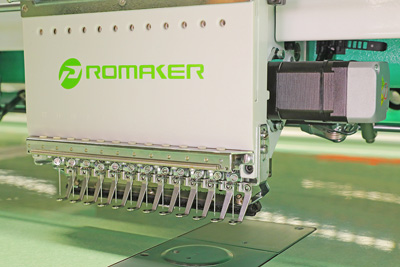

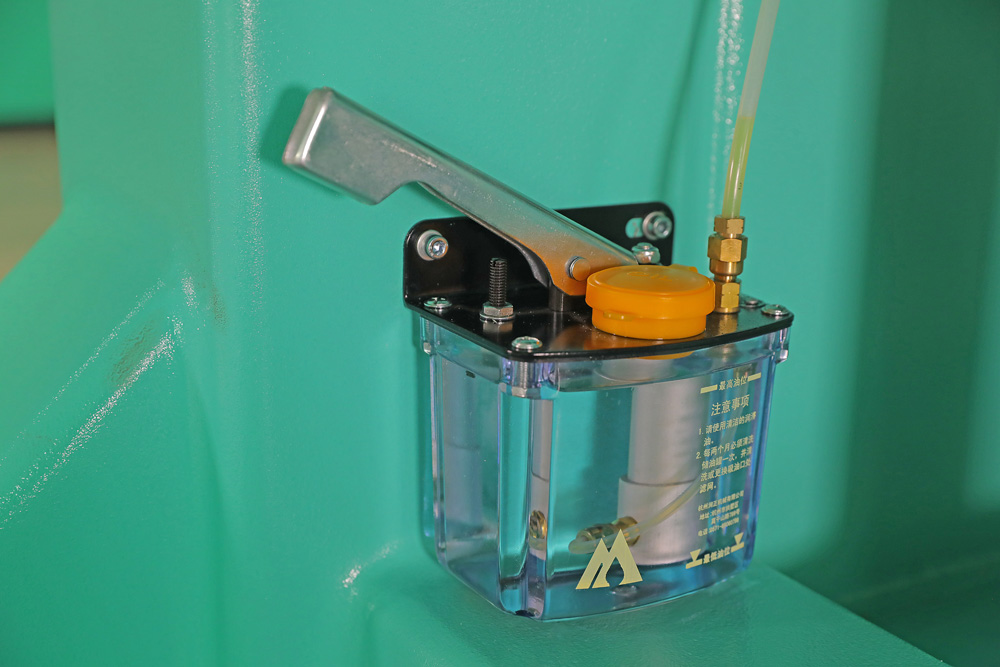

Details
  • HM Flat Machine Series
  • HM Flat Machine Series
  • HM Flat Machine Series
  • HM Flat Machine Series
  • HM Flat Machine Series
  • HM Flat Machine Series
  • HM Flat Machine Series
  • HM Flat Machine Series
Specifications
Model Needles Heads Head interval (mm) X travel (mm) Y travel (mm) L W
PHM-A1208-400-800-1000 12 8 400 800 1000 5410 2550
PHM-A928-330-660-1350 9 28 330 660 1350 11290 3380
PHM-A1215-900-1000-1520 12 15 900 1000 1520 16100 3820
PHM-A690-165-850-1600 6 92 165 850 1600 17885 3980
Optional
  • Multi Sequin Device
  • Cording Device
  • Seed Beads Device
  • Taping beads device
  • Hot cutting device
  • Fiber laser device
  • Boring device
  • Chenille heads (simple or multi-color)
  • Under thread bobbin changer
Service

Promaker believe that keep focusing on customer needs can help us to improve products quality and service. Therefore, we bring in 4S service concept (service, sales, survey, and standard production).
