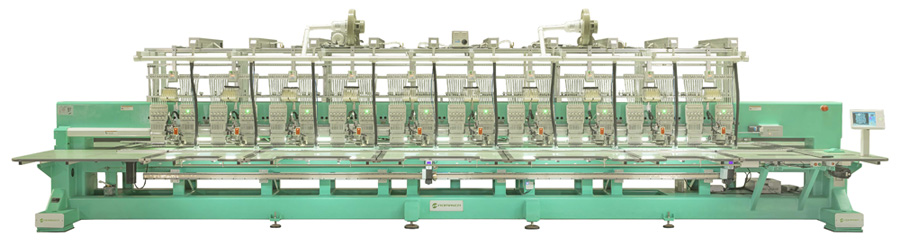

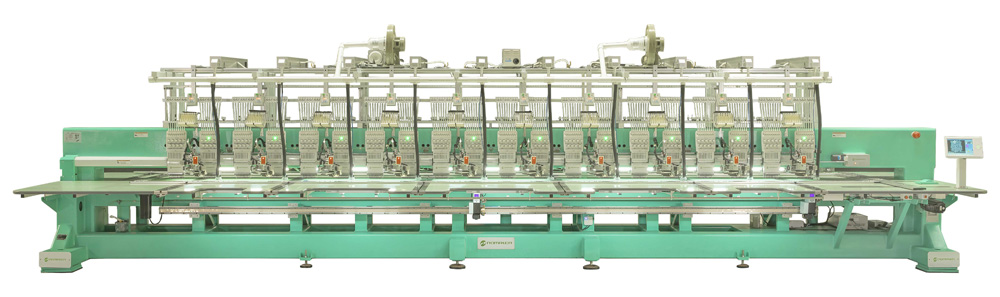

HP Flat Machine Series
Multi-Head Embroidery Machine, Flat Embroidery, 1200rpm
Features
- Maximum flat embroidery speed of 1200rpm.
- Ultra-low noise and ultra-low vibration during high speed operation. Also meets wear resistance requirements at a speed of 1350rpm.
- Service life up to 10+ years.

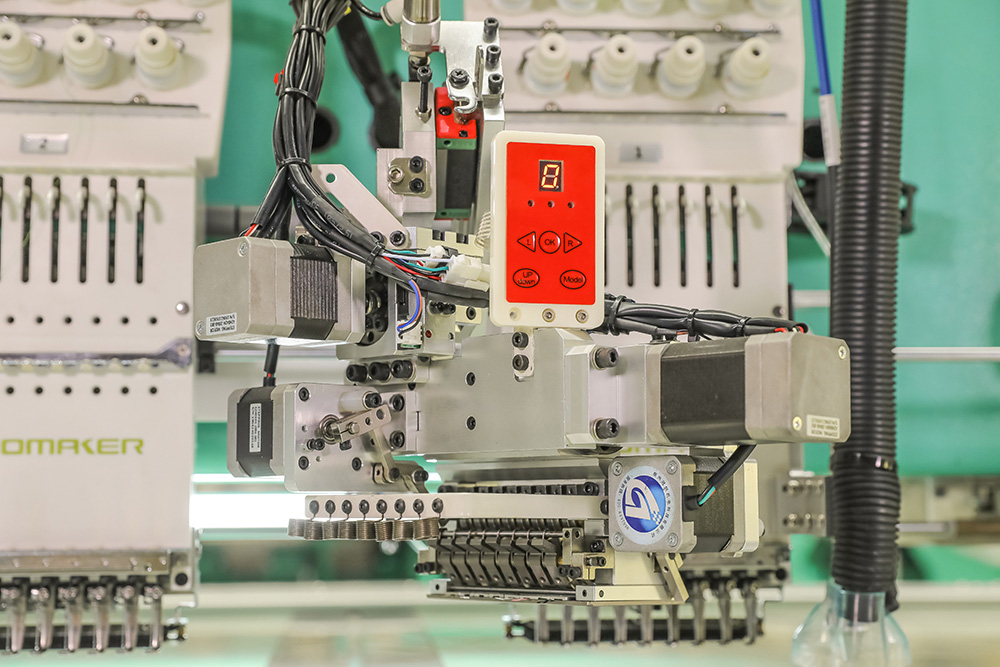

- The semi-static trimming system is equipped with a stepping motor for a 100% trimming pass rate and an adjustable end thread length.
- The entire structure is reinforced with high precision dowel pins, while the head interval and X and Y axis location detection accuracy is 0.05mm.
- The servo drive embroidery hoop system features a high torque and light weight, meeting the needs for high speed and exceptional quality embroidery needs.
Applications
The HP multi-head embroidery machine is ideal for working on a variety of clothing, home textiles, and embroidery artwork, as well as working with thick and thin fabrics. This embroidery equipment is known for its outstanding quality and excellent production output.
Details
Specifications
Model | Needles | Heads | Head interval (mm) | X travel (mm) | Y travel (mm) | L(mm) | W(mm) |
PHP-A926/400-800-850 | 9 | 26 | 400 | 800 | 850 | 12810 | 2280 |
PHP-A928-330-750-1300 | 9 | 28 | 330 | 750 | 1300 | 11780 | 3180 |
PHP-A4110-150-900-1520 | 4 | 110 | 150 | 900 | 1520 | 196650 | 3820 |
PHP-A1515-900-1000-1350 | 15 | 15 | 900 | 1000 | 1350 | 16010 | 3380 |
PHP-A6103+3-165-850-1600 | 6 | 106 | 165 | 850 | 1600 | 20020 | 3980 |
Optional
- Multi sequin device
- Cording device
- Seed beads device
- Taping beads device
- Hot cutting device
- Fiber laser
- Boring device
