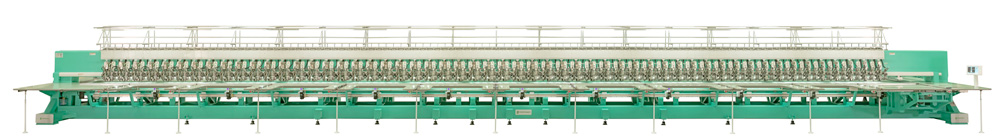

MIX-PB Mix Embroidery Machine | Bead and Sequin Embroidery Machine

Mix-PB Series

Mixed Function Embroidery Machine, Sequin and Embroidery

Features

Maximum speed of 1200rpm
Ultra-low noise and ultra-low vibration at high operation speeds, meeting wear resistance requirements at 1350 rpm
Service life of 10+ years
The semi-static trimming system is equipped with a stepping motor, ensuring a 100% trimming pass rate and an adjustable end thread length.
The full structure is reinforced with high precision dowel pins, and a head interval and X, Y axis location accuracy of 0.05mm.

Applications

This embroidery machine is suitable for clothing and dresses requiring beads and sequins at large scales, such as wedding dresses, evening dresses, and formal gowns.

Details

Specifications

Model	Needles	Heads	Head interval (mm)	X travel(mm)	Y travel(mm)	L(mm)	W(mm)
MIX-PB-A6(1)04-500-600-740	6/1	4/4	500	600	740	4550	2030
MIX-PB-A4(1)27-480-850-1600	4/1	27/27	480	850	1600	15920	3980
MIX-PB-A6(1)48-360-1050-1350	6/1	48/48	360	1050	1350	20790	3480
MIX-PB-A1100+8-168-1380-1640	1	108	168	1380	1640	20892	4060

Optional

Multi Sequin Device
Seed Beads Device
Fiber laser
Under thread bobbin changer

Service

Promaker believe that keep focusing on customer needs can help us to improve products quality and service. Therefore, we bring in 4S service concept (service, sales, survey, and standard production).
