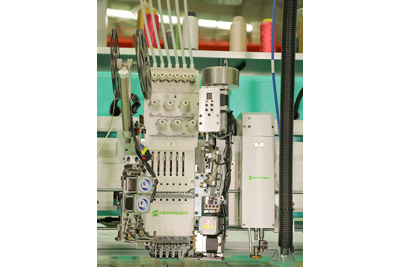

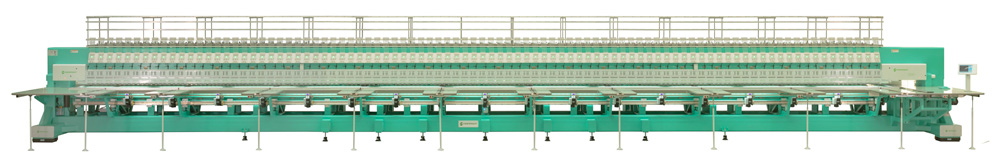

DE Flat Machine Series
Multi-Head Embroidery Machine, Flat Embroidery, 1000rpm
Features
- Maximum flat embroidery speed of 1000rpm.
- Ultra-low noise and ultra-low vibration at high operation speeds, exceptionally stable and durable
- Loss free alternating heads require no electromagnets when the heads close, thus preventing machine damage.
- Service life up to 10+ years.
- This machine features an under thread cutting function with a success rate of 100%.
- The full structure is reinforced with high precision dowel pins, enabling a head interval and X, Y axis location accuracy of 0.05mm.
- The servo drive embroidery hoop system features a high torque, and light weight, allowing it to meet requirements for high speed embroidery needs without sacrificing quality.
Applications
The DE series multi-head embroidery machine is primarily used for embroidery on lace in a size range of 2 to 6 inches. It is especially suitable for high volume production of barcode lace and cotton beading lace.

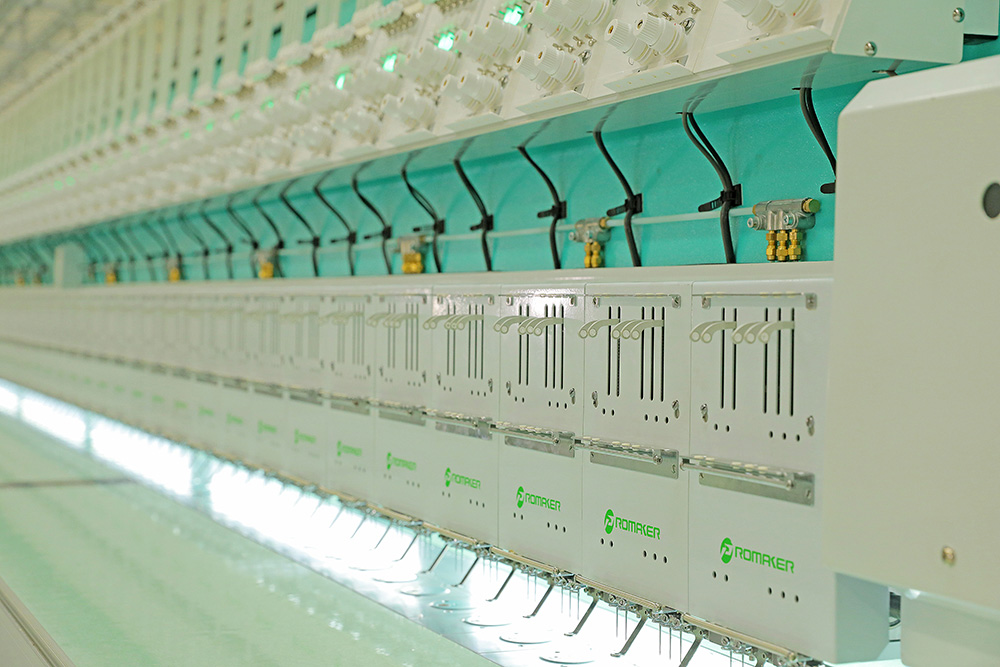

Details
Specifications
Model | Needles | Heads | Head interval (mm) | X travel (mm) | Y travel (mm) | L(mm) | W(mm) |
DE-N2(3)32-60-600-1550 | 2(3) | 32 | 60 | 600 | 1550 | 4390 | 3880 |
DE-N2(3)176-55-600-1550 | 2(3) | 176 | 55 | 600 | 1550 | 1684 | 3980 |
DE-N2(3)186+6-60-600-1550 | 2(3) | 192 | 60 | 600 | 1550 | 13540 | 3880 |
DE-N2(3)176+4-82.5-600-1600 | 2(3) | 180 | 82.5 | 600 | 1600 | 12040 | 3880 |
Optional
- Cording Device
- Hot cutting device
- Fiber laser device
- Boring device

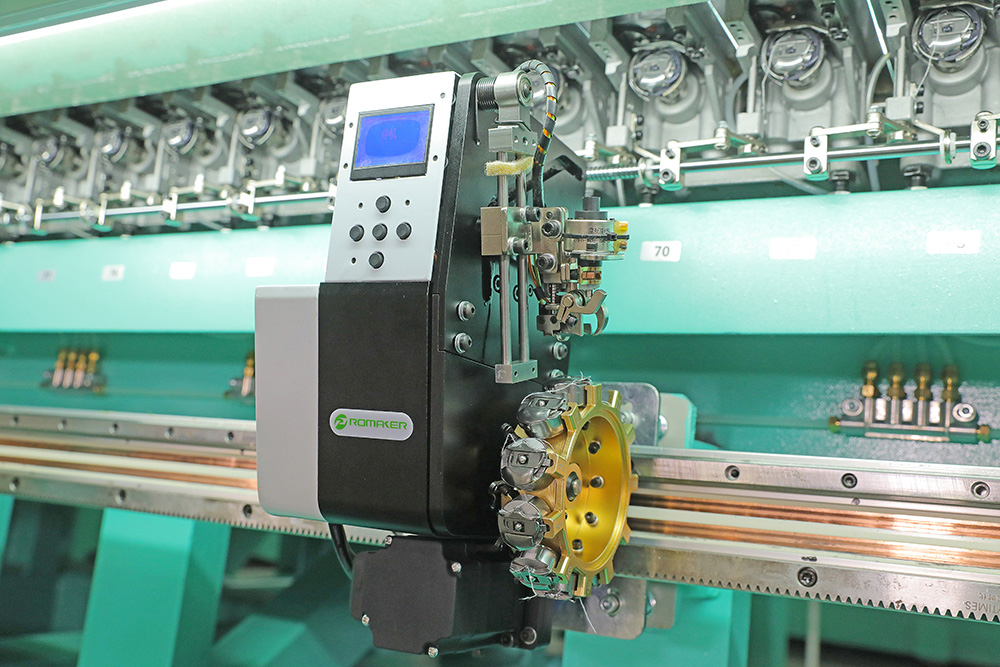

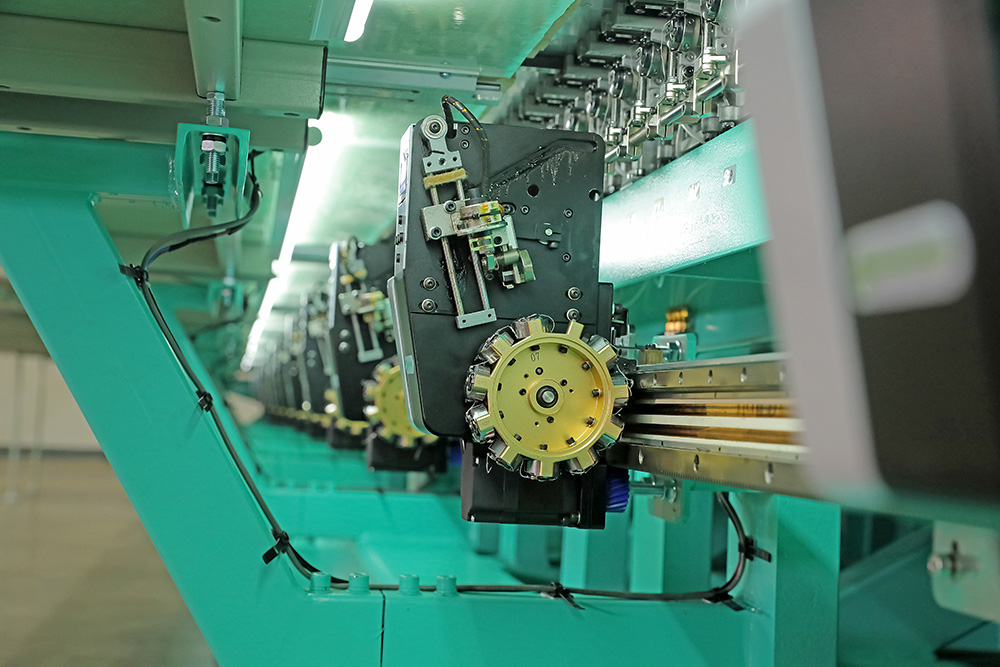

- Under thread bobbin changer
