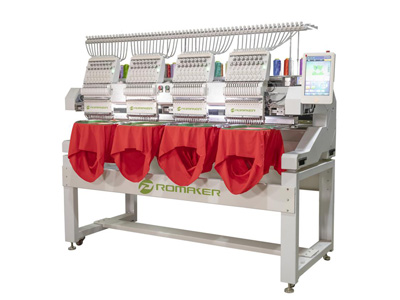

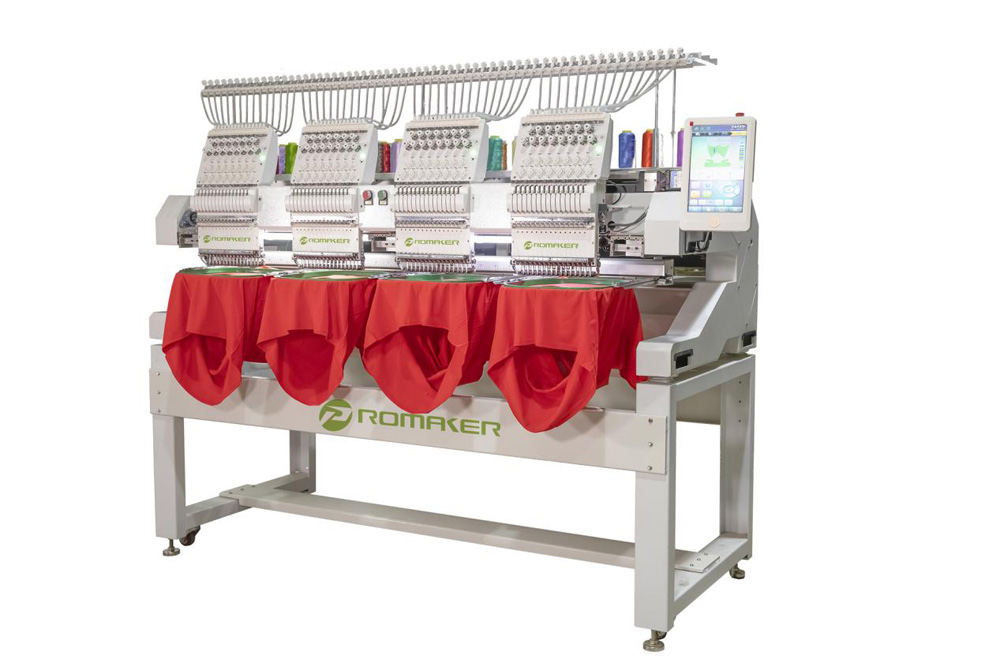

Idea-S Mini Commercial Series

Multi Head Embroidery Machine

Idea-S Mini Commercial Series
Features
  • The idea-s multi-head embroidery machine features a structural frame that ensures machine stability. It is also equipped with casters to allow for easy movement around the installation location.
  • Maximum speed of 1200rpm.
  • The embroidery heads are equipped with an independent electrical presser foot for high quality embroidering.
  • Equipped with a magnetic broken thread detection system, the machine responds faster and automatically counts remaining thread.
  • The dynamic thread cutting system leads to more effective and stable work
  • Models N01, N02 and N03 are equipped with a 270° wide angle cap system, while model N04 is equipped with a 210° wide angle cap system
Applications

Idea-S series multi-head embroidery machines are suitable for embroidering clothes, socks, caps, bags, and other small items in small quantities.

Specifications
Model Needles Heads Head interval (mm) Embroidery area(mm) Dimensions(mm) Power supply(V)
9 12 15 Flats (X*Y) Caps (X*Y) L W H
Idea-S-N01 · · · 1 - 500*360 360*70 830 770 1500 AC90-250
Idea-S-N02 · · · 2 605 500*360 360*70 1305 770 1500
Idea-S-N03 · · · 3 605 500*360 360*70 1910 770 1600
Idea-S-N04 · · · 4 400 400*360 210*70 1910 770 1500
Optional
  • Sequin device
  • Simple cording device
  • Seed beads embroidery device
  • Taping beads device
  • Hot cutting device
  • Fiber laser
  • Boring device
  • Chenille heads
Optional accessories and device
  • Optional accessories and deviceShoes Devices
  • Optional accessories and device8in 1 Frame
  • Optional accessories and deviceSocks Device
Hoops/frames
  • Hoops/framesRound hoops 90mm
  • Hoops/framesRound hoops 120mm
  • Hoops/framesRound hoops 150mm
  • Hoops/framesRound hoops 180mm
  • Hoops/framesRound hoops 300*300mm
  • Hoops/framesRound hoops 360*540mm
Cap attachment
  • Cap attachmentCap station
  • Cap attachmentCap drive
  • Cap attachmentCap ring
Multi-domain application
  • Multi-domain applicationT-shirt
  • Multi-domain applicationHandbag
  • Multi-domain applicationHats
  • Multi-domain applicationShoes
  • Multi-domain applicationTrousers
  • Multi-domain applicationSocks
Network technology

Using advanced network technology. Customers can connect all the machines with one computer, embroidery the same design on all of your machines at the same time.

Network technology

Service

Promaker believe that keep focusing on customer needs can help us to improve products quality and service. Therefore, we bring in 4S service concept (service, sales, survey, and standard production).
